Launch Position Results

150,000 uF Capacitor

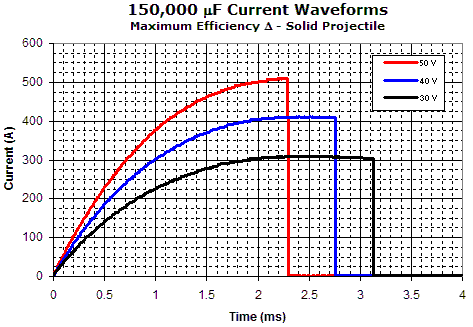

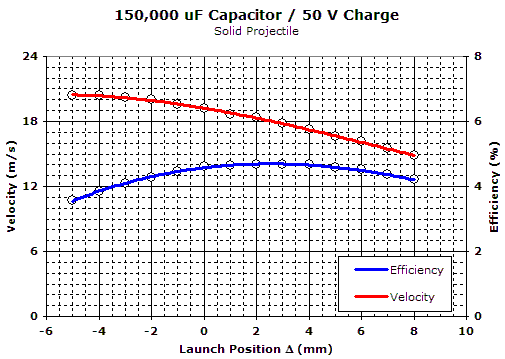

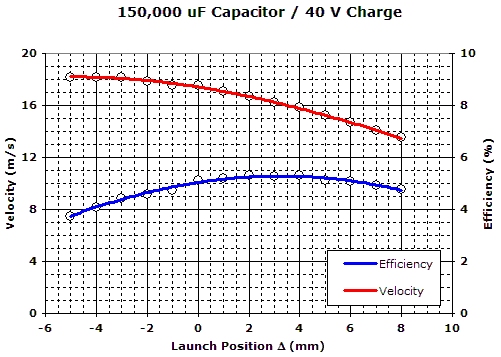

Figs 1, 2 and 3 show the effect of launch delta on the resulting velocity and efficiency using various charge voltages. Fig 4 illustrates the capacitor current waveforms for each charging voltage at the maximum efficiency launch delta.


Fig 1.


Fig 2.


Fig 3.


Fig 4.
