Launch Position Results

33,000 uF Capacitor

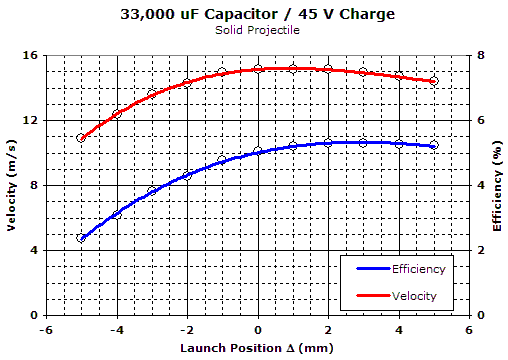

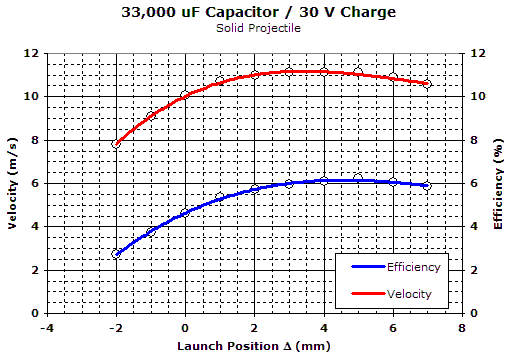

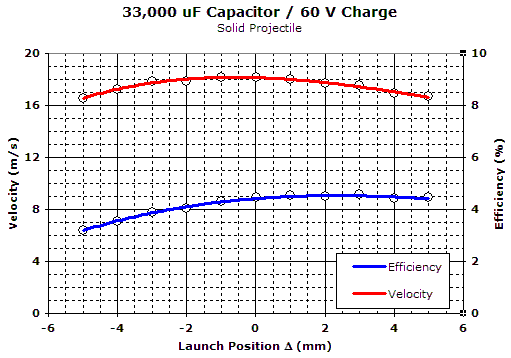

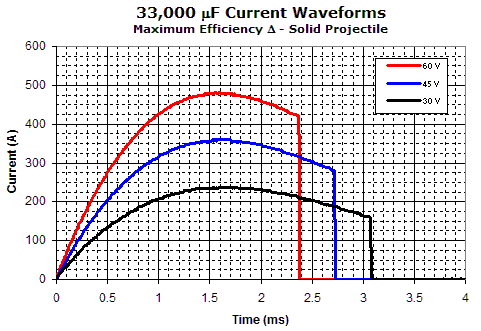

Figs 1, 2 and 3 show the effect of launch delta on the resulting velocity and efficiency using various charging voltages. Fig 4 illusrtates the capacitor current waveforms for each charging voltage at maximum efficiency.



Fig 1.



Fig 2.



Fig 3.



Fig 4.
