Thyristor Fired Coilgun Results

33,000 uF Capacitor

Figs 1 and 2 illustrate the characteristic surfaces for velocity and efficiency. Note the difference in the orientation of the axes between figs 1 and 2. Fig 3 shows the coil current during the entire discharge. Again we can see that the change of projectile position has a slight affect on the peak current.

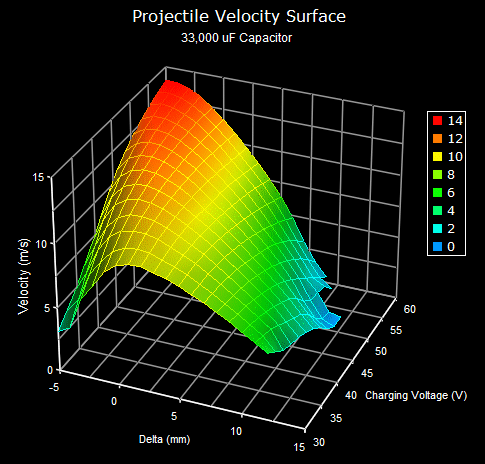

Fig 1. Velocity surface with delta and charging voltage as parameters.

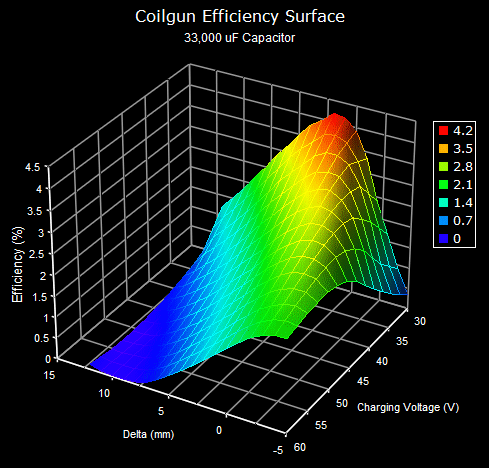

Fig 2. Efficiency surface with delta and charging voltage as parameters.

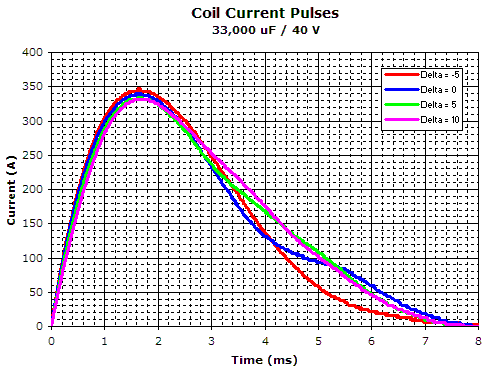

Fig 3. Complete coil current pulses for various launch delta.
